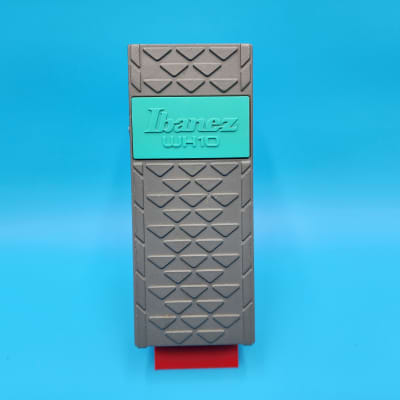

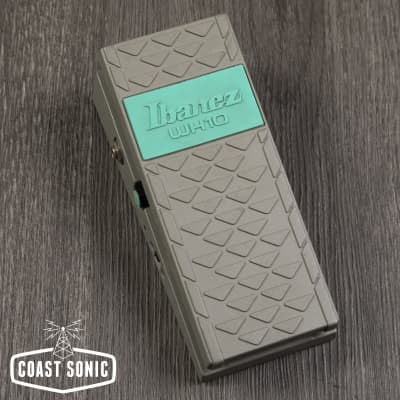

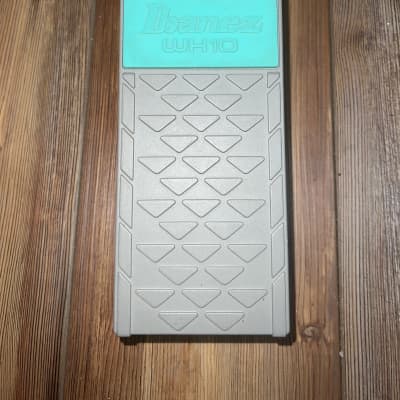

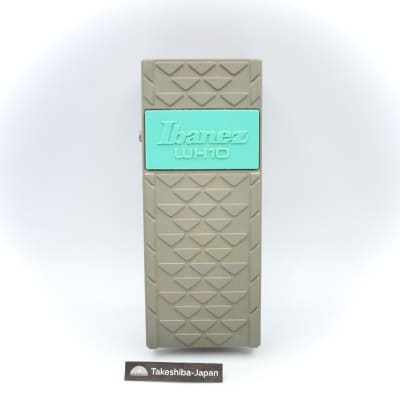

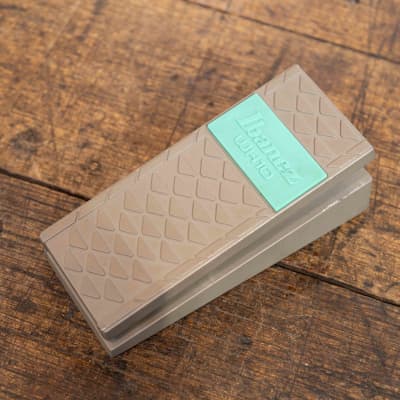

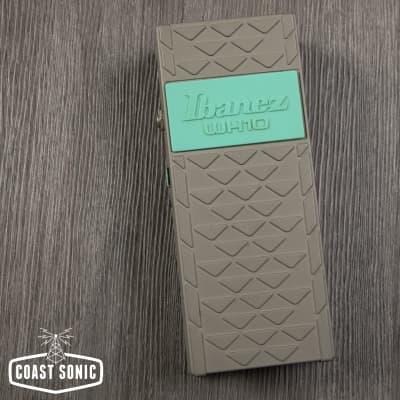

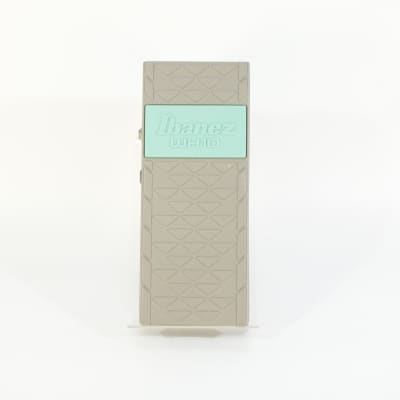

WH10v2 Wah

The Ibanez WH10v2 Wah pedal is a reissue of the classic 80s wah pedal from Ibanez, featuring a die-cast metal construction to ensure durability. It is equipped with a depth knob for controlling the level of the wah effect and a dry out for mixing a dry signal with the wah sound. The pedal features a multiple feedback opamp circuit, a feature rarely found in today's wah pedals, and has a unique tone character setting it apart from traditional wah pedals. The technical specifications of the WH10v2 Wah pedal are as follows:

- Input Impedance: 500k Ohms
- Output Impedance: < 1k Ohm
- Maximum Output Level: +4 dBv
- Wah Range for Guitar: 350Hz-2.2kHz, for Bass: 175Hz-1.1kHz
- Wah Depth: +6dB to +20dB
- Equivalent Input Noise: -95 dBv (IHF-A)
- Power Consumption: 6 mA
- Power Requirements: 9 V DC
- Dimensions: 200(D) x 89(W) x 55-84(H) mm
- Weight: 490g

The pedal is suitable for guitar and bass use, offering a versatile wah effect with modern tweaks to accommodate changing musical styles.
