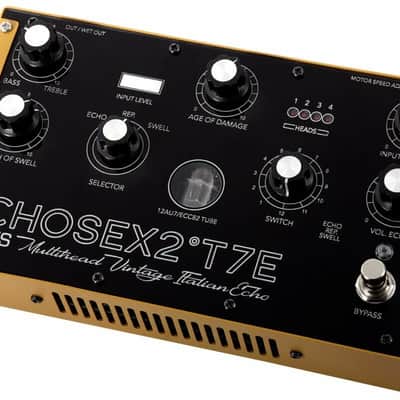

EchoSex 2 T7E

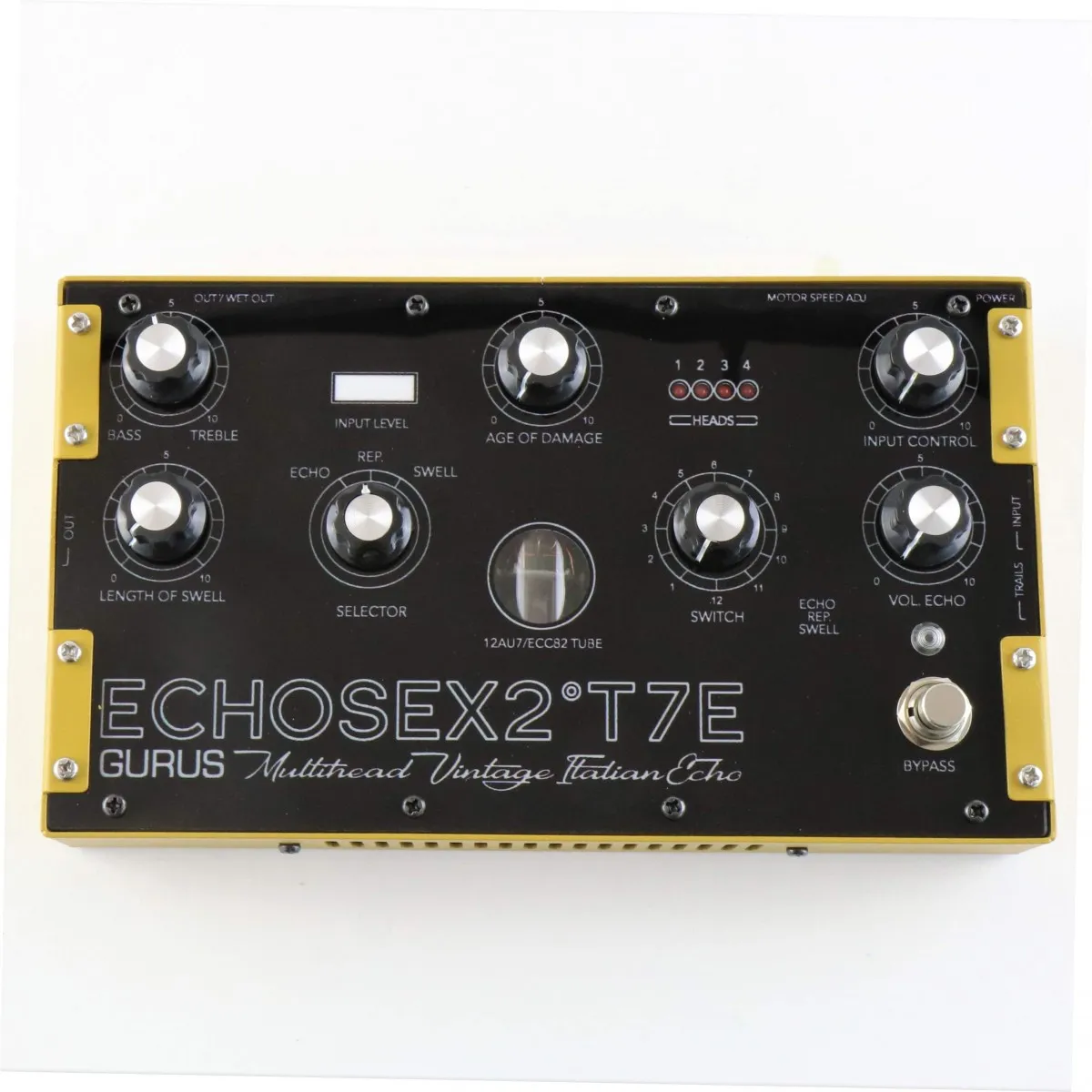

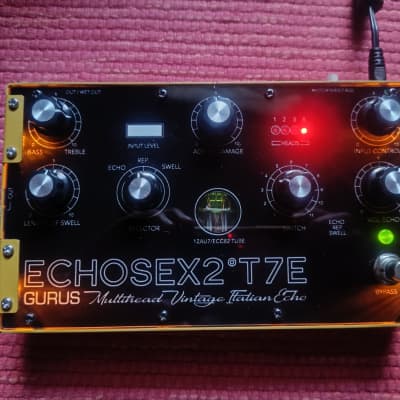

The Gurus EchoSex 2 T7E is a compact effect pedal designed as a reissue of the legendary Binson Echorec analog delay. It features a 100% analog signal path and is equipped with a 12AU7B tube and a Pure Class A Preamp Cascade J-FET. The pedal offers a delay time ranging from 60 to 740ms and includes multi- heads with a 12-position switch and a 3-way selector for echo, repetition, and swell modes.

Key technical specifications of the Gurus EchoSex 2 T7E include:
- Power Input: 9 to 12VDC (negative TIP)
- Current Draw: 290mA
- Input Sensitivity: 1Vpp Max
- Input Impedance: <1M Ohm
- Output Impedance: <47K Ohm (Unbalanced)
- D.I. OUT Impedance: <47K Ohm (Sim. Balanced)
- Preamp Linearity Response: 7Hz to 161KHz @1db
- Signal-to-Noise Ratio (S/N ratio): Preamp <90db, Heads -90dbV
- Effect Mix Level: Max. 50%
- WET DI Out Mix: 100% WET
- Dimensions: 220 x 125 x 50 mm
- Weight: 0.7Kg

The pedal also features an "Age Of Damage" control that allows users to reproduce the random wearing of the mechanical parts of the original Binson Echorec. Additionally, it offers a true bypass or spillover mode selectable option and a D.I. 100% WET Out for connection to mixing consoles or parallel amp’s Fx loop.

For more detailed information, the user manual for the Gurus EchoSex 2 T7E can be accessed at the following link: [User Manual](https://www.gurusamps.com/uploads/User-s-Manual-T7E-ENG- compressed.pdf)
