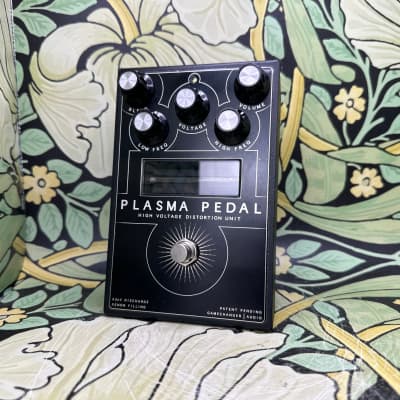

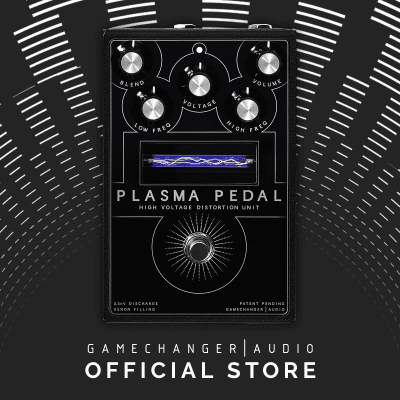

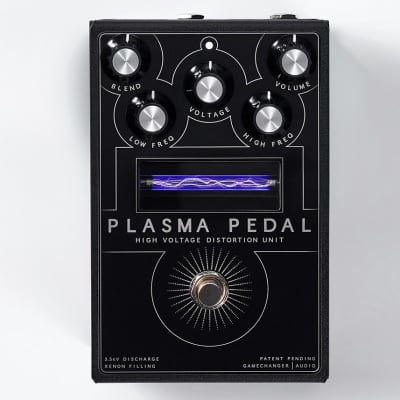

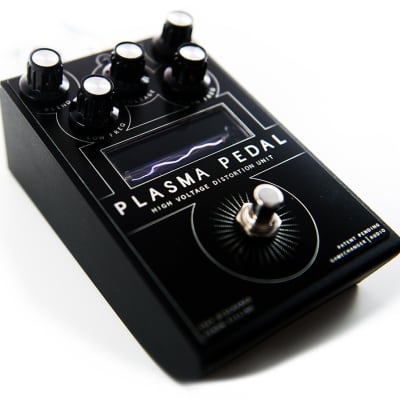

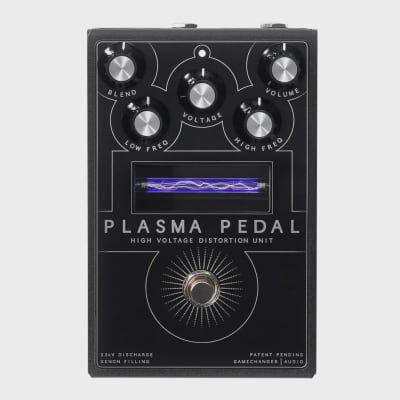

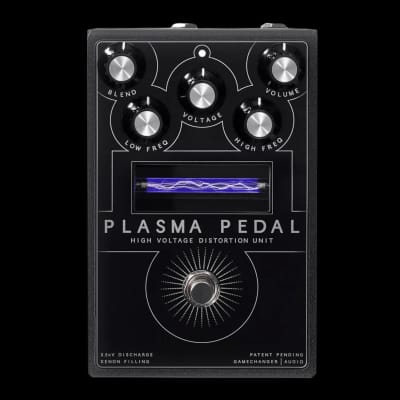

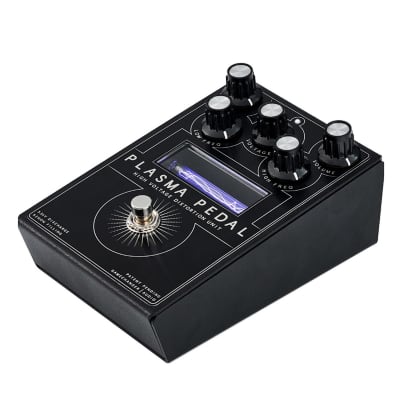

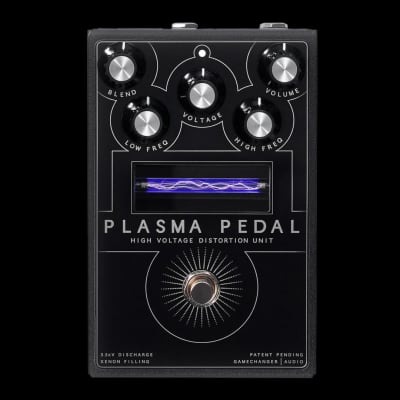

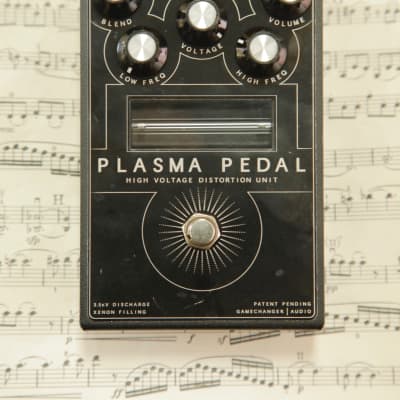

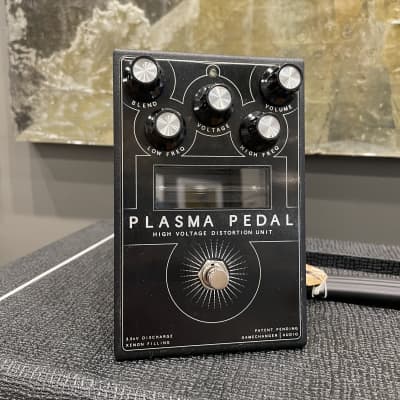

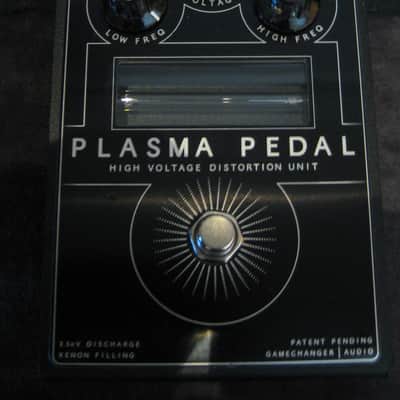

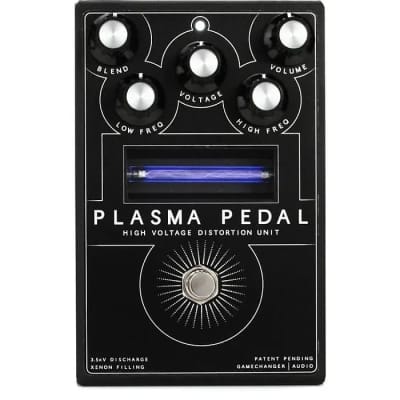

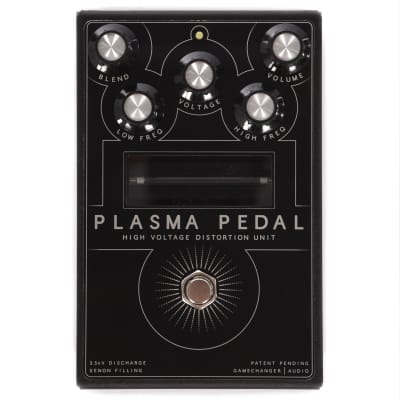

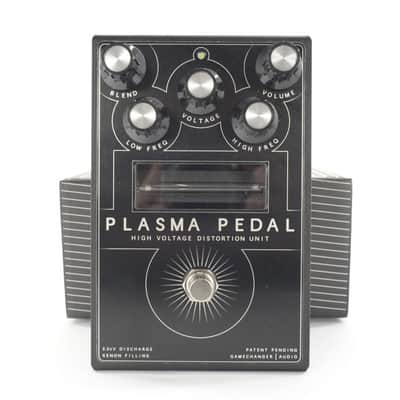

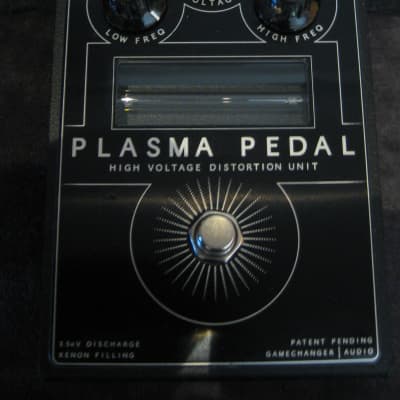

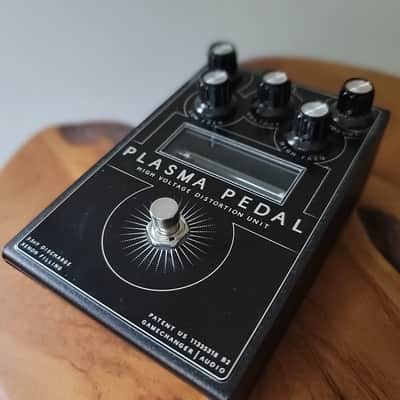

PLASMA Pedal

The PLASMA Pedal by Gamechanger Audio is a high-voltage distortion effect pedal that offers unique and revolutionary sound capabilities. The technical specifications include:

- Max Output Level: 7Vpp (+10dBu)
- Power Connector: Center negative 2.1 x 5.5 mm barrel plug (standard 9V)
- Frequency Response: 20Hz to 22kHz
- Inputs: 1 x 1/4" (instrument)
- Outputs: 1 x 1/4"
- True Bypass: Yes
- EQ: Low Freq, High Freq, Clean EQ switch
- Power Consumption: 9V DC center negative, 300 mA
- Dimensions: H: 7 cm (including knobs), W: 9.6 cm, D: 14.8 cm
- Weight: 0.84 kg
- Circuit: Analog with Xenon Tube
- Tube Equipped: Yes

The PLASMA Pedal converts incoming audio signals into a beam of "high voltage" electricity (a harmless 3.5kV) in a xenon-filled vacuum tube, producing a natural noise gate that stops producing any output when not playing the instrument. It offers a wide EQ range enabled by fluctuations in the electromagnetic field surrounding the gas-discharge tube. The pedal is suitable for guitarists and musicians working with synths, drum machines, and other electronically controlled instruments, providing a rich and useful distortion effect.

The pedal is designed for use after other drive pedals and before modulation effects in a guitar or bass rig, and almost at the end before the reverb in a synth or studio setup. The PLASMA Pedal is known for its massive distortion with saturated overtones and harmonics, offering a unique and innovative approach to distortion effects.
