DPC-5 Gen3 Guitar Pedal By Disaster Area Designs

DPC-5 Gen3

Pedal Manufacturer

Disaster Area Designs

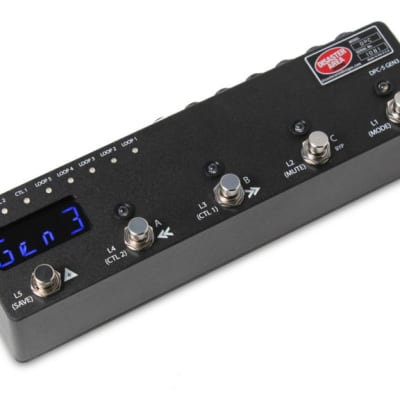

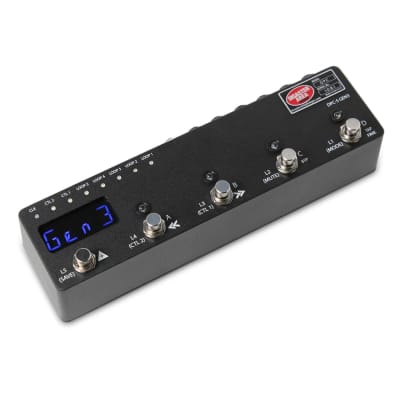

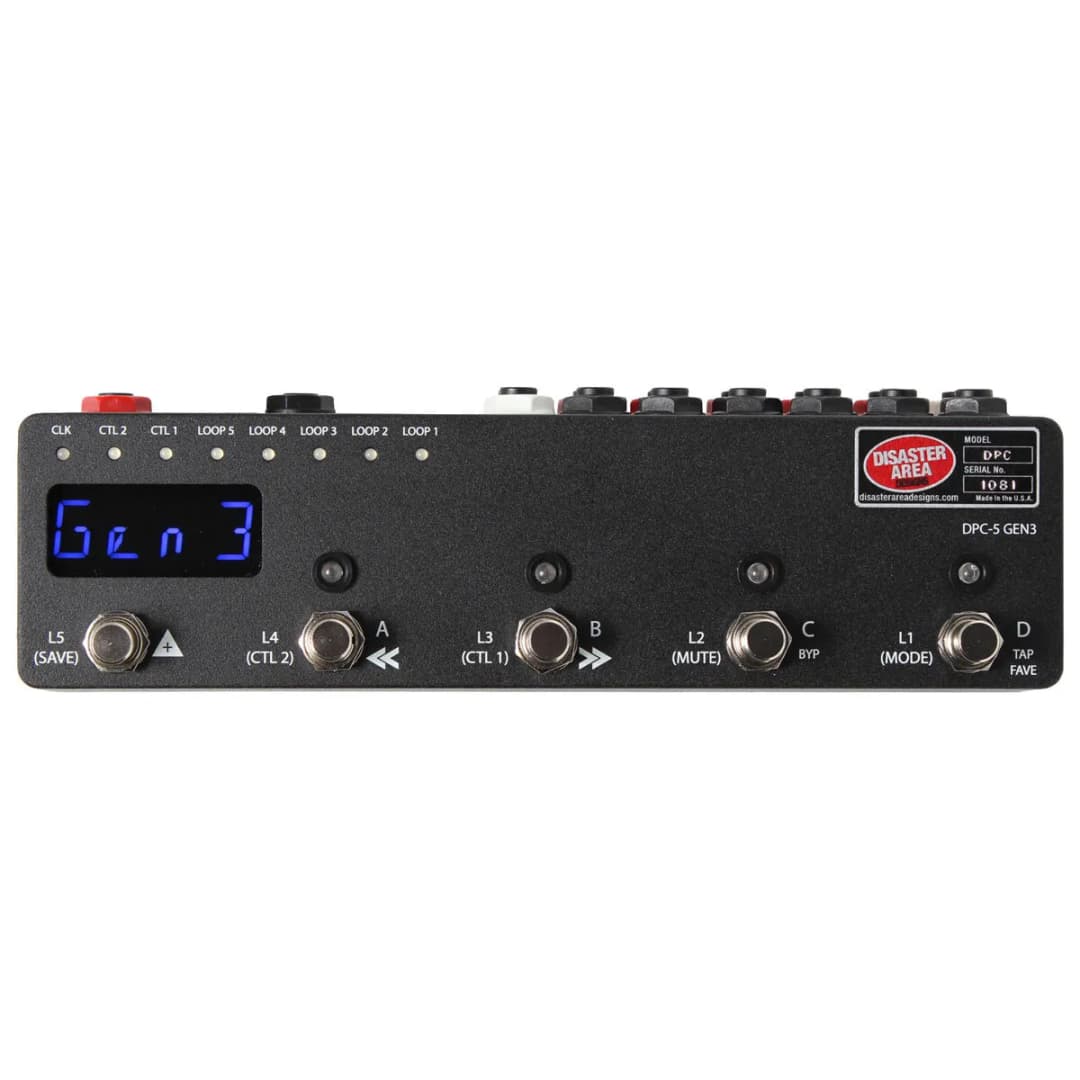

The Disaster Area Designs DPC-5 Gen3 is a compact MIDI controller and loop switcher designed to control a mix of MIDI and non-MIDI pedals in a rig, allowing users to craft presets that can be engaged instantly. The technical specifications and features include:

- Compact size: 10" x 2.5" x 2.0" (excluding switch caps and jacks)
- Sturdy cast aluminum enclosure
- Soft-touch footswitches
- Blue LED display with 10 brightness levels
- No special power supply required, uses less than 120mA, 9V from a Pedal Power 2 or similar power supply
- Five effects loops with optional noise-cancelling mute circuitry
- High-quality bypassable buffer allows Loop 1 to be used even for impedance- sensitive devices like vintage fuzzes
- Isolated TRS outputs for amplifier or remote switching
- Always-on tuner output jack with mute capability
- 1/4" jack for expression pedal or tap tempo switch
- 5-pin MIDI port, doubles as MIDI input using the Disaster Area MIDI Y-Cable
- USB port with USB-MIDI functionality or USB Host compatibility
- Built-in SMARTClock for sending MIDI Clock or tap tempo to connected devices
- Built-in SMARTSwitch with isolated TRS jack for amplifier channel, tremolo, reverb, or other switching functions
- MultiJack functions as expression pedal input, tap tempo input, tap tempo output, or MIDI output with Disaster Area TRS to MIDI Adaptor Cable
- MIDI Input and Output: 5-pin MIDI jack on the DPC-5 operates as a MIDI output and can also receive MIDI in using the Disaster Area MIDI Y-Cable
- Easy firmware update process
- Supports full MIDI control for various devices including Strymon, Eventide, Line 6, Chase Bliss, Boss, Electro-Harmonix, Empress, and more

The DPC-5 Gen3 also offers new features such as preset naming capability, improved LED indication and display, silent loop switching, improved audio path and buffers, separate expression and roller configuration, optional gHOST compatibility, and more MIDI control capabilities.

Watch something on YouTube

Watch DPC-5 Gen3 Videos, Demos, and Reviews

Watch the latest video demos and reviews for the DPC-5 Gen3 from YouTube. Stompbx updates this every six months to reflect the most popular reviewers and guitar pedal demos for each pedal.

Reverb Listings

Reverb Listings

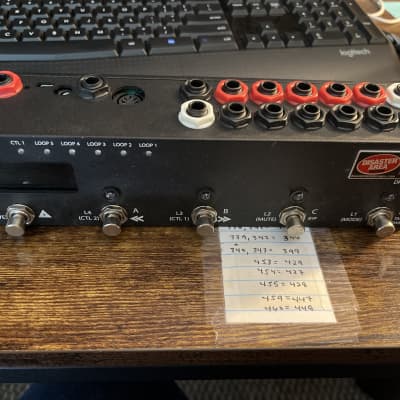

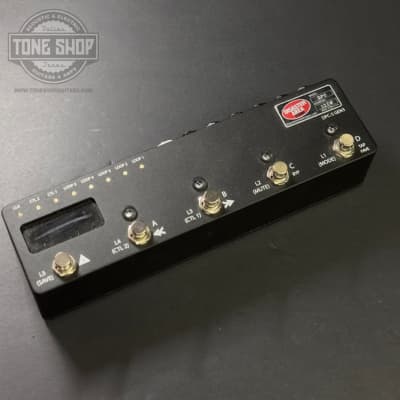

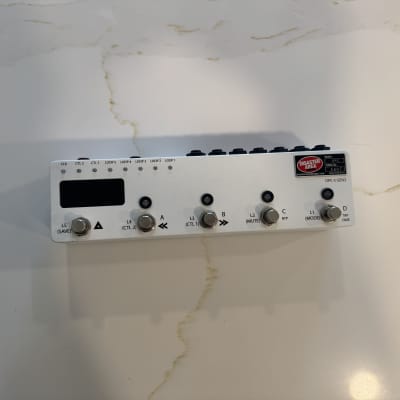

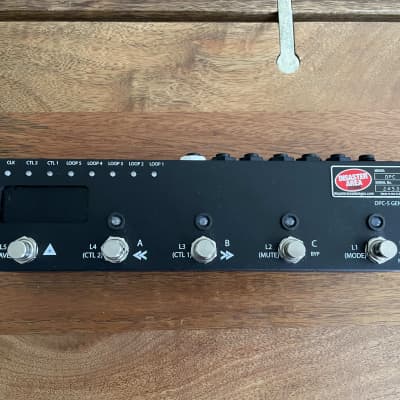

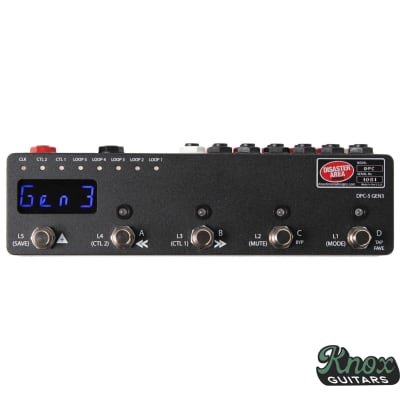

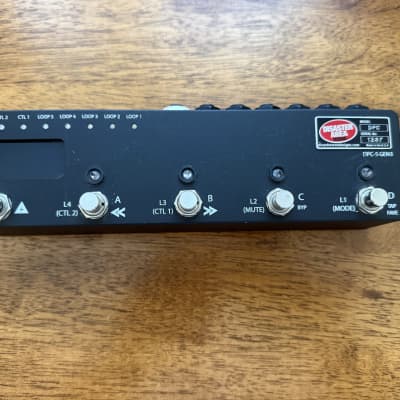

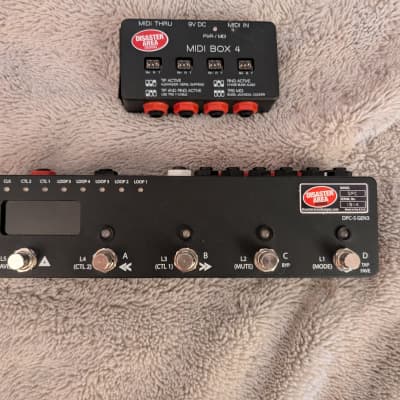

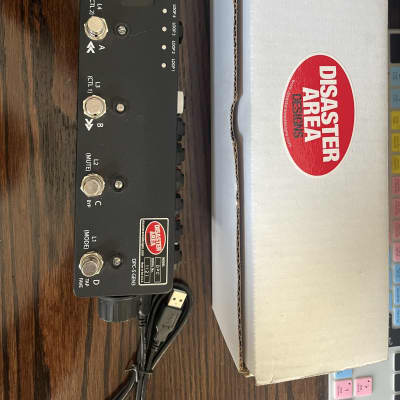

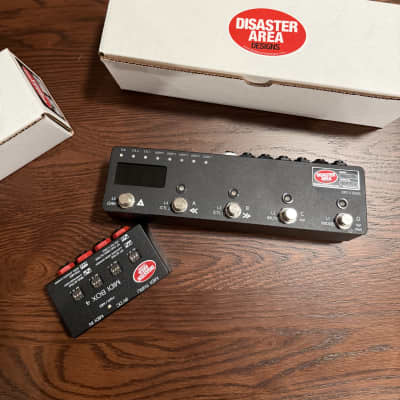

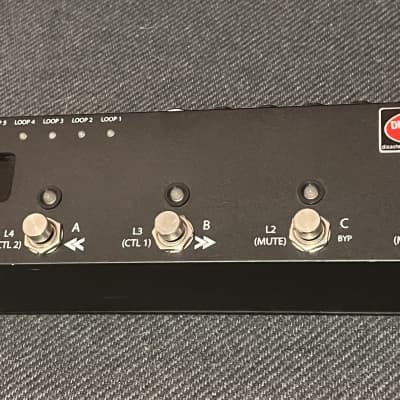

Find Disaster Area Designs DPC-5 Gen3 Listings on Reverb

Below are live Reverb listings for the Disaster Area Designs DPC-5 Gen3 from Reverb. Stompbx automatically aggregates current offers to give you a quick look at available models, conditions, and prices. Perfect for comparing options and making an informed purchase.

eBay listings for disaster-area-designs-dpc-5-gen3

eBay Logo for Listings

eBay Listings for DPC-5 Gen3

Browse through eBay listings for the DPC-5 Gen3 compiled in real-time. From vintage finds to brand-new units, see a variety of purchasing options. This automated collection helps you explore deals and find the right pedal at the right price.

Similar pedals

eBay Logo for Listings

Pedals Similar to DPC-5 Gen3 on Stompbx

Discover pedals with similar features or sounds to the DPC-5 Gen3. This section leverages data to suggest alternatives that complement or expand your pedalboard. Ideal for exploring related sounds or finding a pedal that matches your specific needs.

SP1-L6 Helix Expression Pedal Guitar Pedal By Mission Engineering

Controllers and Switches

Mission Engineering

SP1-L6 Helix Expression Pedal

SM200 Slow Motion Guitar Pedal By Behringer



SM200 Slow Motion

BudWah wah wah Guitar Pedal By Budda

Controllers and Switches


BudWah wah wah

Pedal Palette Guitar Pedal By Decibel Eleven

Controllers and Switches

Decibel Eleven

Pedal Palette

Iron Lung Guitar Pedal By Electro-Harmonix

Controllers and Switches


Iron Lung

Siren Wah-Wah Guitar Pedal By Shin-ei

Controllers and Switches


Siren Wah-Wah

610 Volume/Tone Guitar Pedal By DeArmond

Controllers and Switches


610 Volume/Tone

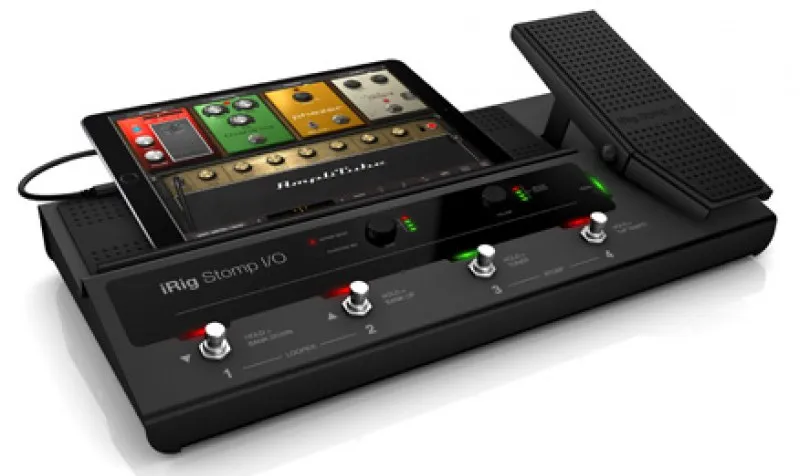

iRig Stomp I/O Guitar Pedal By IK Multimedia
