Dirty Robot

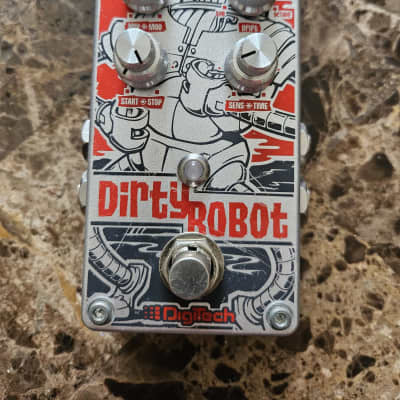

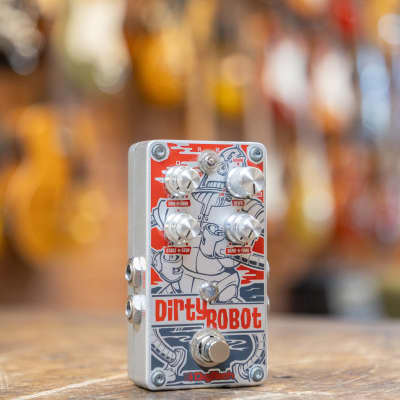

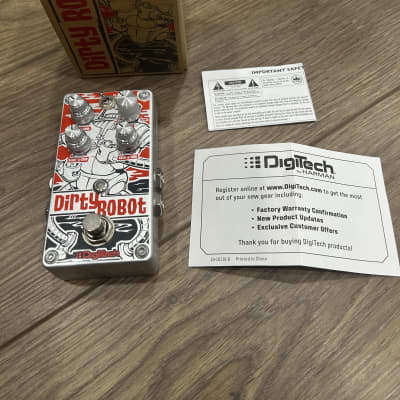

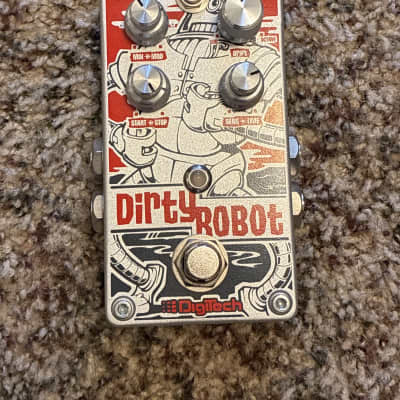

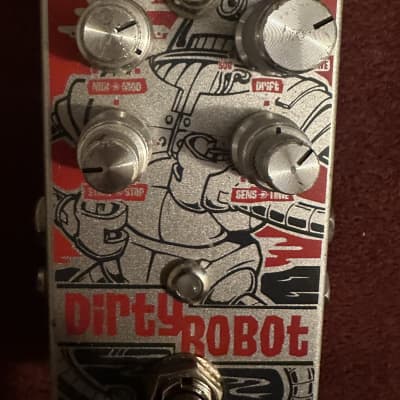

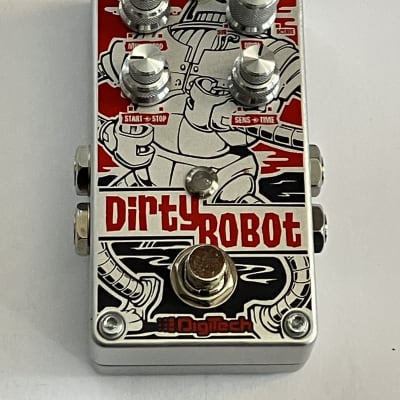

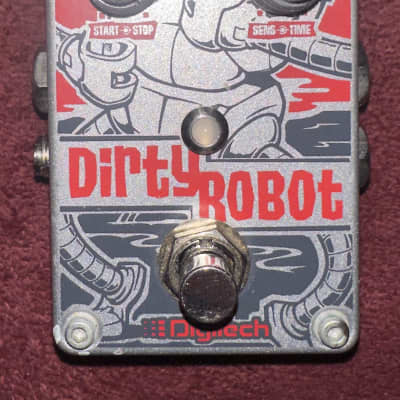

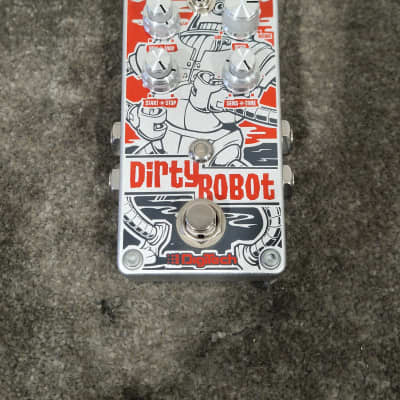

The Dirty Robot by DigiTech is a unique synthesizer emulation pedal designed for guitar and bass. It offers two different synth voices for creating diverse sound textures without the need for special pickups. The V1 voice provides warm analog synthesis with subtle to extreme envelope sweeps reminiscent of classic synths from the 70s and 80s, while the V2 voice offers a vocal formant synthesis effect suitable for vocoder emulation or talk box style effects.

Key Features:
- Two synth voices: Synth and Vocal Formant
- Drift knob for blending Square Wave with Octave and Sub synthesis soundscapes
- Built-in chorus and vibrato effects for added versatility
- Stereo ¼” inputs and outputs for routing flexibility
- True bypass circuitry
- Momentary switch for accessing virtual "mod wheel"

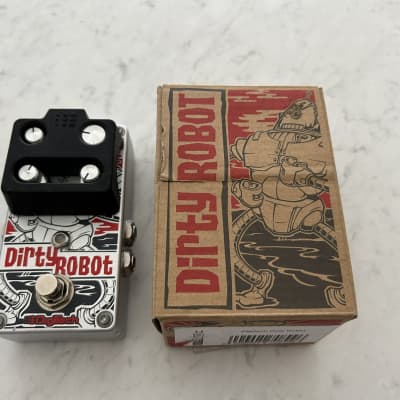

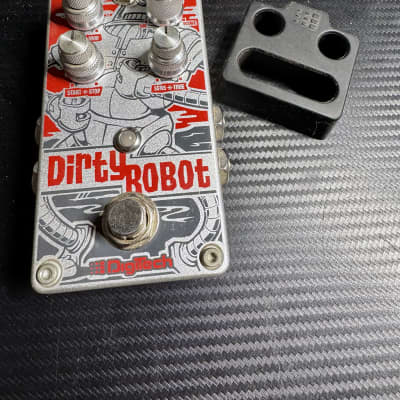

- Stomplock™ for securing settings
- Custom-cut Hook and Loop Pedalboard Pad

Specifications:
- Controls: Mix, Modulation, Drift, Start, Stop, Sensitivity, Time, Effect on/off Footswitch
- Indicators: Effect on/off LED
- Inputs: 2 x ¼” instrument
- Input Impedance: Effect on: >1 MΩ (stereo), >500 kΩ (mono); Effect off: >1 MΩ (stereo), >500 kΩ (mono)
- Outputs: 2 x ¼” instrument
- Output Impedance: Effect on: 1 kΩ; Effect off: 1 kΩ
- Power Requirements: 9 VDC external power supply (required)
- Power Consumption: 675 mW (< 75 mA @ 9 VDC)
- Power Supply Model: PS0913DC-01 (US, JA, EU); PS0913DC-02 (AU, UK)
- Dimensions: 4.40” (L) x 2.65” (W) x 2.0” (H); 11.18cm (L) x 6.73cm (W) x 5.08cm (H)
- Weight: 1 lb; 0.453 kg

The Dirty Robot pedal is designed to integrate easily into existing pedalboards and offers a wide range of control in a compact form factor.
