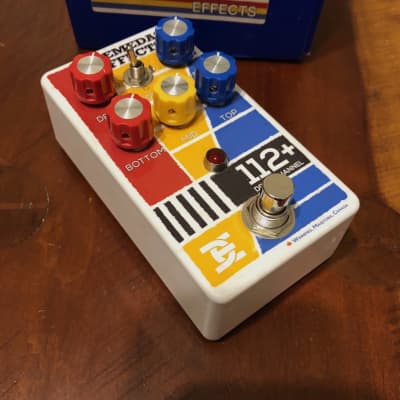

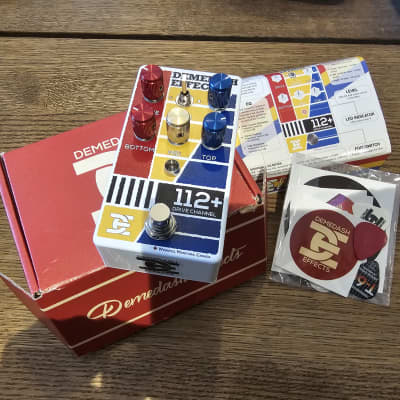

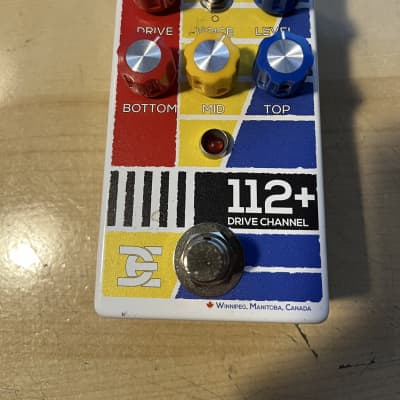

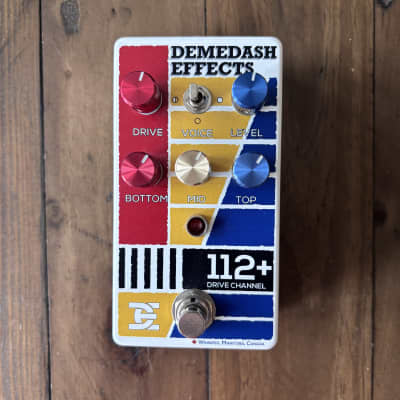

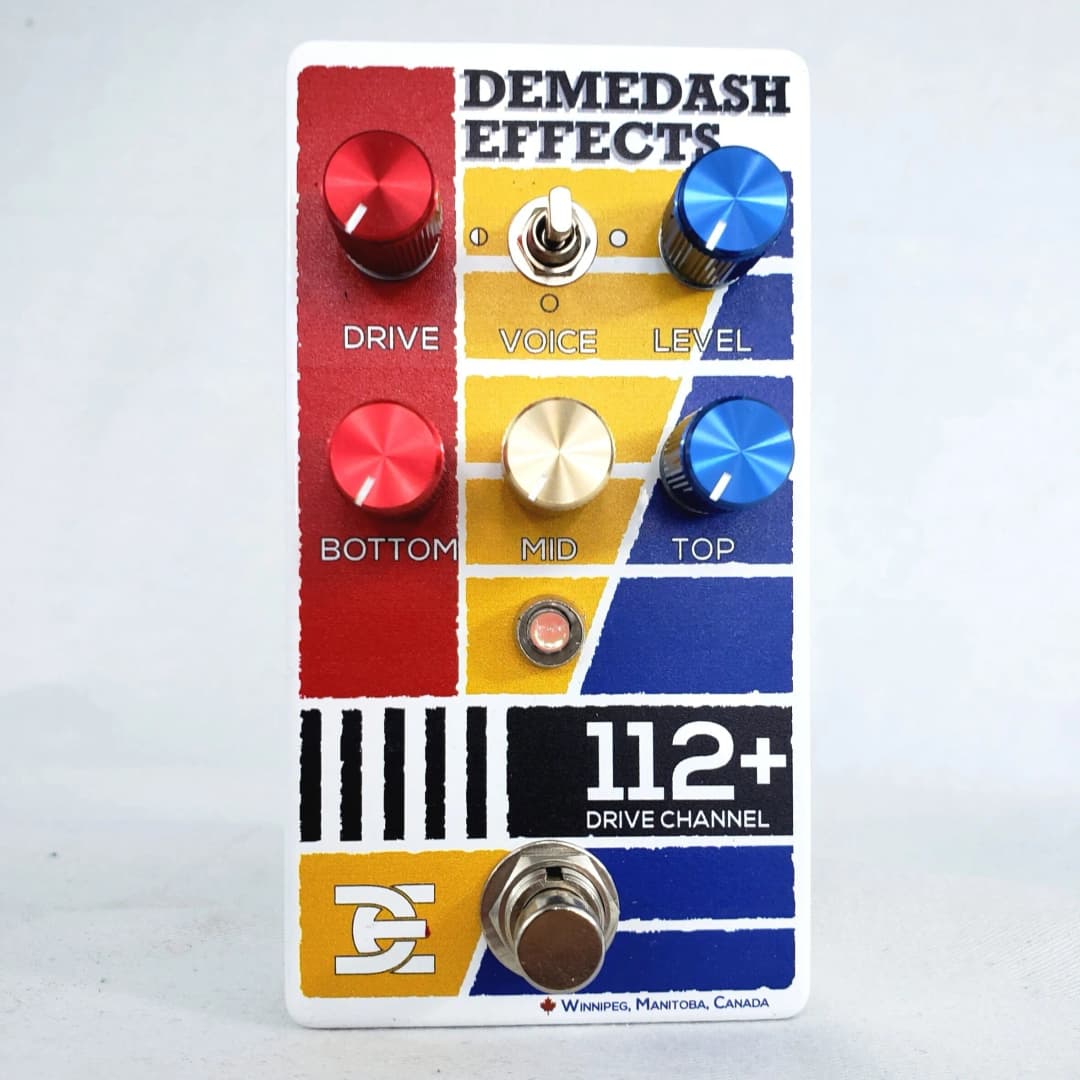

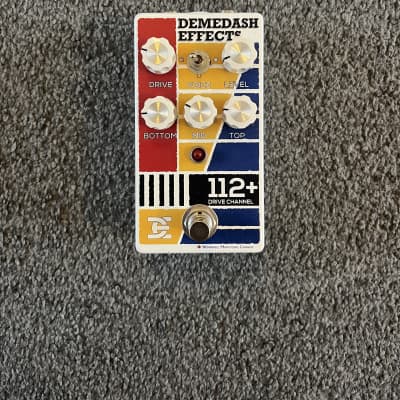

112+ Drive Channel

The Demedash Effects 112+ Drive Channel is a preamp distortion pedal with the following technical specifications and features:

- 9VDC Operation, 60 mA current draw
- Power boosted internally to 32v for high headroom
- All Analog
- 125B Size (4.7”x2.75”)
- Lifetime warranty
- Equipped with a fully active 3-band EQ
- Three different gain modes
- Enormous 32 Volt headroom
- Unique clipping scheme based on early 90's solid state amplifiers
- Hand-made in Canada using top-quality components

The pedal is designed to provide tube-like saturation, low noise floor, and the ability to clean up well. It offers a unique clipping scheme that causes the signal to hit multiple clipping thresholds before having the sharp edges smoothed out, resulting in a rounded waveform similar to the response characteristic of a valve amplifier driven into heavy overdrive when the gain is turned up.

The 112+ Drive Channel is known for its versatility, professional-grade gain staging, and impressive low noise floor. It is designed to complement and enhance existing sounds, stacking beautifully with other devices to lend them more push, grit, and power. The pedal also features a 3-band active EQ for sculpting the drive sound to individual preferences.

The MkII version, released in 2021, includes extended drive control, a high- passed clean boost blended with low-passed grit, and automatic self-adjusting circuit level as gain increases.
