HT-BOOST

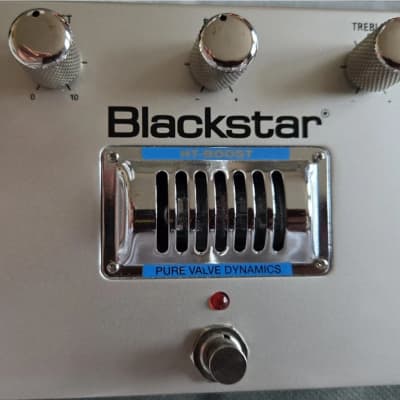

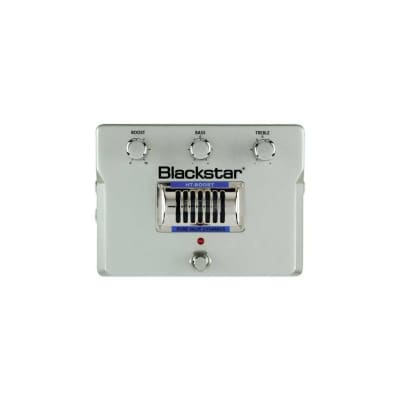

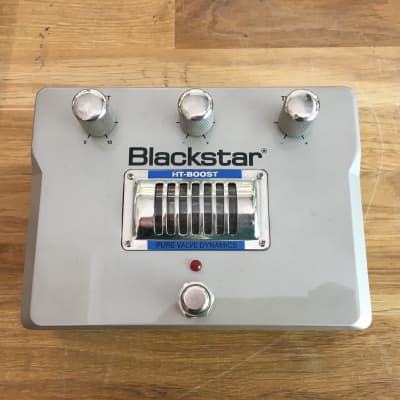

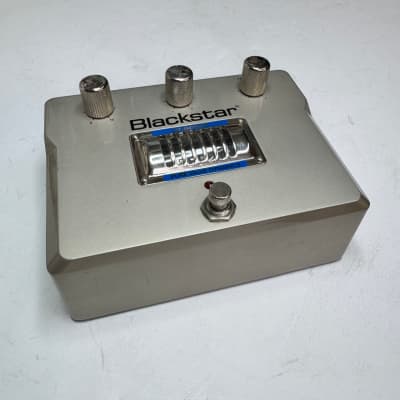

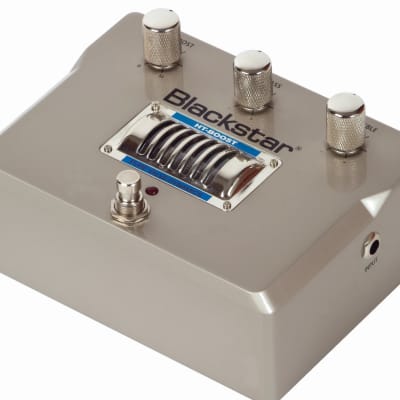

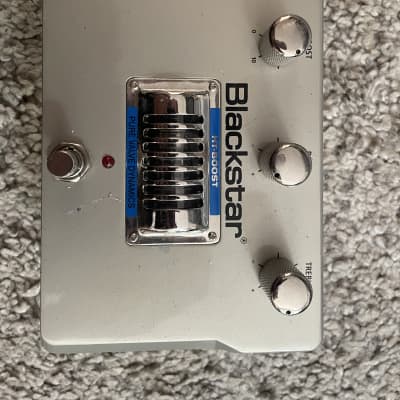

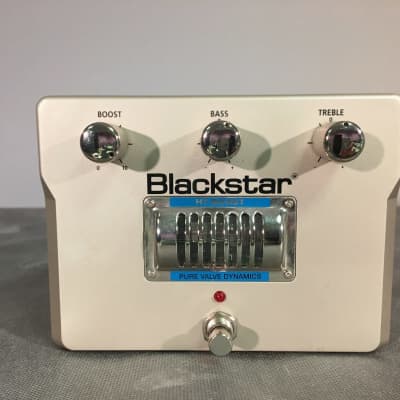

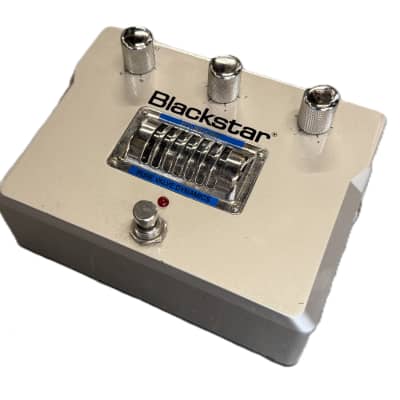

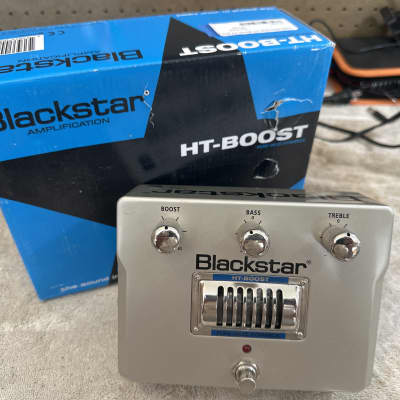

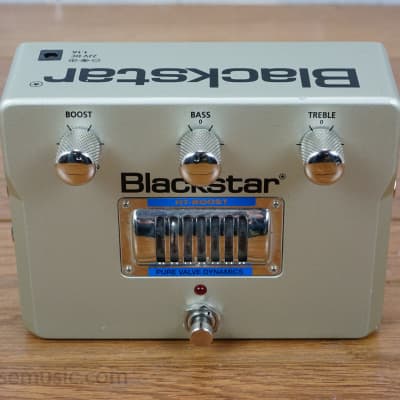

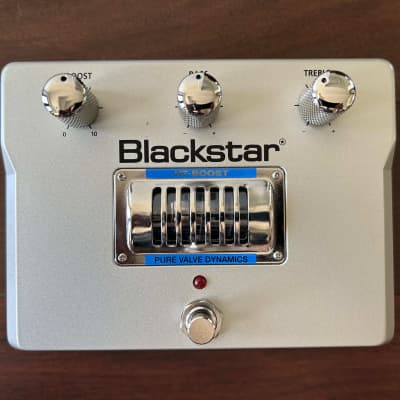

The Blackstar HT-BOOST is a tube-driven boost and overdrive pedal designed to enhance dynamics and touch response. It features a high voltage gain circuit, adding two extra hot tube stages to the amp, ensuring maximum delivery of dynamics and tone. The pedal includes an all-valve cut and boost tone section and a high-level output specially designed to drive the tube amp hard. It operates at 300V HT and includes cascaded tube gain stages for a dynamic overdrive. The pedal also offers silent switching operation, all-tube tone control circuit, and high integrity buffered bypass. The technical specifications include a power supply of 22V DC with a maximum current draw of 1.1A. The controls consist of Boost, Bass, and Treble, and it is equipped with an ECC83 / 12AX7 valve. The pedal also features an Effect On/Off LED, Effect On/Off Switch, and DC Inlet. The input impedance is 1MΩ, and the output impedance is less than 1KΩ. The dimensions are 160 x 119 x 80mm, and it weighs 1.2kg. The pedal is designed for guitarists seeking the ultimate tools for self-expression and is suitable for live performances or recording.
