MOC-1

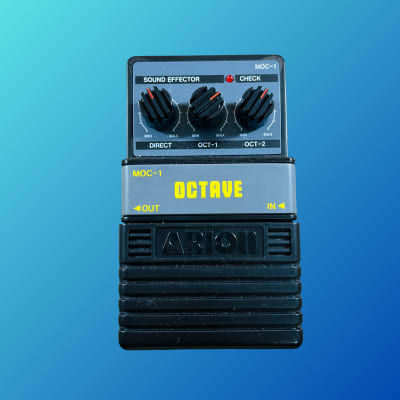

The Arion MOC-1 Octave pedal is designed to provide added parts, including one octave down and two octaves down. It features control knobs for the direct signal and each of the octave parts. The pedal is equipped with a rugged in/out footswitch and a status LED.

Technical Specifications:
- Power Requirements: DC 9V Battery or 100mA - 200mA AC Adapter
- Consumption Current: DC 9V 2.8mA
- Input Impedance: 300K ohms
- Output Impedance: 10K ohms or more
- Noise Level: -70dB, 0dB = 1 V Input short-circuited
- Controls: Direct, Octave 1, Octave 2
- Other Functions: Normal/Effect selection switch, Check indicator
- Terminals: Input jack, output jack, AC adapter jack
- Dimensions: 73W x 50H x 127D mm
- Weight: 340 grams including battery

The MOC-1 pedal is known for its ability to provide classic unison guitar/bass tones and offers an easy-open battery compartment for simple 9-volt operation. It is designed to add depth and versatility to guitar and bass setups.
